storage.c File Reference

Disk read/write routines. More...

#include "storage.h"
#include "board.h"
#include "console.h"
#include "mmc.h"
#include "buffer.h"

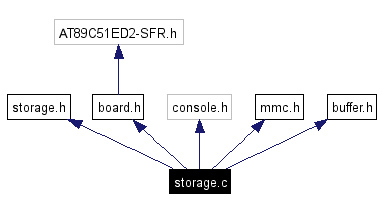

Include dependency graph for storage.c:

Include dependency graph

Go to the source code of this file.

Functions

Public unsigned char InitStorage ()
 Initialize the storage system.

Public unsigned char PrepareToReadDiskSector (unsigned long sectorN)
 Give a hint to the storage that the next sector we will read is sectorN.

Public unsigned char ReadDiskSector (unsigned long sectorN)
 Read a disk sector to global buffer.

Public void DumpDiskSector ()
 Do a hex dump on console of current sector in memory.

Public void WriteDiskSector (unsigned long sectorN)
 Write current buffer memory to sectorN.


Variables

xdata unsigned char storageFlags = 0
 Storage status flags.

Detailed Description

Disk read/write routines.

Implemented Disk interface: MMC.

v0.5: added support for more MMC card brands, rewritten code for better clarity.

This module reads and writes blocks of disk data to/from a global buffer. The logical place to define these globals is where they are needed most: the module that contains the file system functions. By default that means filesys.c. These globals are needed (see filesys.h):

Definition in file storage.c.

Function Documentation

Public void DumpDiskSector (   )


Do a hex dump on console of current sector in memory.

Definition at line 141 of file storage.c.

References DiskBlock::Raw::buf, diskSect, Address::l, Public, DiskBlock::raw, and sectorAddress.

00141                             {
00142   unsigned int ha,la;
00143
00144   ConsoleWrite("\rDiskBlock ");
00145   ConsolePutUInt(sectorAddress.l);
00146   ConsoleWrite(":\r");
00147   for (ha=0; ha<32; ha++){
00148     ConsolePutHex16 ((ha<<4));
00149     ConsoleWrite(": ");
00150     for (la=0; la<16; la++){
00151       ConsolePutHex8(diskSect.raw.buf[(ha<<4)+la]);
00152       ConsolePutChar(' ');
00153       if (la==7){
00154         ConsolePutChar(' ');
00155       }
00156     }
00157     ConsolePutChar(' ');
00158     for (la=0; la<16; la++){
00159       if ((diskSect.raw.buf[(ha<<4)+la]) > 30){
00160         ConsolePutChar(diskSect.raw.buf[(ha<<4)+la]);
00161       }else{
00162         ConsolePutChar('.');
00163       }
00164     }
00165     ConsolePutChar('\r');
00166   }
00167 }

Public unsigned char InitStorage (   )


Initialize the storage system.

  • returns 0 when successful
  • returns 1 if mmc was not properly initialized

Definition at line 43 of file storage.c.

References InitMMC(), Public, and storageFlags.

Referenced by InitFileSystem().

00043                                   {
00044
00045   unsigned char result;
00046
00047   ConsoleWrite ("Init: Storage v2: supports: MMC,SD,miniSD in SPI mode\r");
00048
00049   result=InitMMC();
00050   if (result==0x0e){ //ok, no support for seek-before-read
00051     ConsoleWrite("Storage initialized in seek-and-read mode.\r");
00052     storageFlags = 1;
00053     return 0;
00054   }
00055
00056   if (result){ //error resulted in MMC startup
00057     ConsoleWrite("InitStorage: Can't start MMC. ");
00058     ConsolePutHex8(result);
00059     ConsolePutChar(13);
00060     storageFlags = 4;
00061     return 1; //MMC Init Error
00062   }
00063
00064   ConsoleWrite("InitStorage ok.\r");
00065   storageFlags = 0;
00066   return 0;
00067
00068 }

Here is the call graph for this function:

Public unsigned char PrepareToReadDiskSector (  unsigned long  sectorN  )


Give a hint to the storage that the next sector we will read is sectorN.

If the storage device supports performing a separate seek before the data is read (for instance MMC card that can be taken off-line between seek and read), storage seeks in this function. The user should not need to worry about this and calling PrepareToReadDiskSector is voluntary.

Definition at line 71 of file storage.c.

References Public, SeekSector(), and storageFlags.

Referenced by PlayDiskSectors().

00071                                                                    {
00072
00073 #ifdef MMCDEBUG
00074   ConsoleWrite("<strategy:");
00075   ConsolePutUInt(sectorN);
00076   ConsoleWrite(" Flags:");
00077   ConsolePutHex8(storageFlags);
00078 #endif
00079
00080   if (!storageFlags){
00081     //Storage device supports seek-before-read
00082     if (SeekSector(sectorN)){
00083
00084 #ifdef MMCDEBUG
00085       ConsoleWrite("Seek Error. strategy>");
00086 #endif
00087
00088       return 0x0f; //seek error code
00089     }
00090     storageFlags |= 0x02; //flag: a sector is seeked for reading
00091
00092 #ifdef MMCDEBUG
00093     ConsoleWrite("Seeked. strategy>");
00094 #endif
00095
00096     return 0; //ok return
00097   }
00098
00099 #ifdef MMCDEBUG
00100   ConsoleWrite("strategy>");
00101 #endif
00102
00103   return 0; //ok return
00104 }

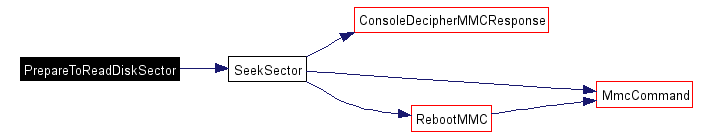

Here is the call graph for this function:

Public unsigned char ReadDiskSector (  unsigned long  sectorN  )


Read a disk sector to global buffer.

Returns 0 when successful, error code 6 otherwise.

Definition at line 110 of file storage.c.

References Public, ReadPhysicalSector(), SeekSector(), and storageFlags.

Referenced by BuildFragmentTable(), FGetChar(), GetAVIBlock(), GetFatEntry(), GetNextSector(), InitFileSystem(), LoadNextSector(), OpenFile(), PlayAvi(), PlayDiskSectors(), Record(), and WriteClusterChain().

00110                                                           {
00111
00112
00113 #ifdef MMCDEBUG
00114   ConsoleWrite("<read"); //Read called (strategy, not yet actual read)
00115 #endif
00116
00117   //if a sector has not already been seeked, seek now.
00118   if (!(storageFlags&0x02)){
00119 #ifdef MMCDEBUG
00120     ConsoleWrite("F");
00121 #endif
00122     if (SeekSector(sectorN)) return 0x0f; //seek error
00123   }
00124
00125   storageFlags &= 0xfd; //clear sector-already-seeked flag
00126   if (ReadPhysicalSector()){
00127     ConsoleWrite("error read>");
00128     return 0x10; //read error
00129   }
00130
00131 #ifdef MMCDEBUG
00132     ConsoleWrite("read>");
00133 #endif
00134
00135   return 0; /* All OK return */
00136 }

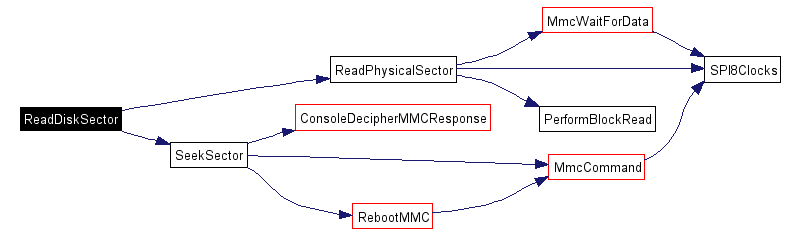

Here is the call graph for this function:

Public void WriteDiskSector (  unsigned long  sectorN  )


Write current buffer memory to sectorN.

Sector address (0=first 512B sector, 1=2nd. sector, etc.) is in extern global unsigned long sectorAddress

Warning:
Unimplemented!

Definition at line 183 of file storage.c.

References DiskBlock::Raw::buf, dataBufPtr, diskSect, Address::l, Public, DiskBlock::raw, sectorAddress, and WritePhysicalSector().

Referenced by OpenFile(), Record(), and WriteClusterChain().

00183                                                   {
00184   sectorAddress.l = sectorN;
00185   dataBufPtr = diskSect.raw.buf;
00186   WritePhysicalSector();
00187 }

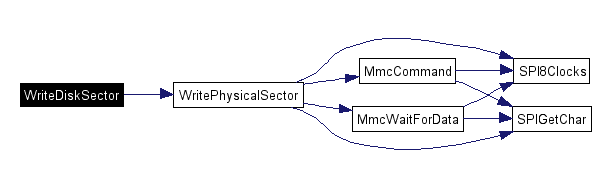

Here is the call graph for this function:

Variable Documentation

xdata unsigned char storageFlags = 0


Storage status flags.

  • Bit 1 (LSB): 1=Device does not support interrupted read
  • Bit 2: 1=A sector is seeked and ready for reading
  • Bit 3: 1=No storage

Definition at line 34 of file storage.c.

Referenced by InitStorage(), PrepareToReadDiskSector(), and ReadDiskSector().
