VLSI Solution Oy Evaluation MP3 Player Source Code Documentation

mmc.c File Reference

MMC interface routines for storage.c. More...

#include "mmc.h"
#include "board.h"
#include "console.h"
#include "buffer.h"

Include dependency graph for mmc.c:

Go to the source code of this file.

Functions
unsigned char	MmcCommand (unsigned char c1, unsigned char c2, unsigned char c3, unsigned char c4, unsigned char c5)
	Do one MMC command and return the MMC SPI R1 response.
unsigned char	MmcWaitForData ()
	MMC Wait For Data start token 0xfe.
void	MmcGetData (unsigned int amountOctets)
	Read a Data Block from MMC.
unsigned char	GetStorageInformation ()
	Returns MMC Card Identification Register in diskSect.
unsigned char	RebootMMC ()
	Try to switch on the MMC.
Public unsigned char	InitMMC ()
	Start-up the MMC card.
void	PerformBlockRead ()
	Perform the actual reading of 512 octets from MMC.
void	ConsoleDecipherMMCResponse (unsigned char c)
	Print a human-readable R1 response to console.
Public unsigned char	SeekSector (unsigned long sectorN)
	Perform MMC Seek Command for offset sectorN*512.
Public unsigned char	ReadPhysicalSector ()
	Perform block read of previously sought sector to diskSect.
unsigned char	WritePhysicalSector ()
	Perform MMC block write from *dataBufPtr to sector sectorAddress.l.

---

Detailed Description

MMC interface routines for storage.c.

Definition in file mmc.c.

---

Function Documentation

void ConsoleDecipherMMCResponse (  unsigned char  c  )

Print a human-readable R1 response to console. Definition at line 386 of file mmc.c. References KEY_BUTTON, Address::l, sectorAddress, and SPIGetChar(). Referenced by SeekSector(). { ConsoleWrite ("\rSeek failed, MMC returns "); ConsolePutHex8 (c); ConsoleWrite ("h ("); if (c&128) ConsoleWrite("which is NOT an R1 response!!"); else{ if (c&64) ConsoleWrite("ParameterError "); if (c&32) ConsoleWrite("AddressError "); if (c&16) ConsoleWrite("EraseSequenceError "); if (c&8) ConsoleWrite("CommandCrcError "); if (c&4) ConsoleWrite("IllegalCommandCode "); if (c&2) ConsoleWrite("EraseCancelled "); if (c&1) ConsoleWrite("Idle "); } ConsoleWrite (") for sector "); ConsolePutUInt (sectorAddress.l); ConsoleWrite(".\rFurther reading data returns: \r"); for (c=0; c<255; c++){ ConsolePutHex8(SPIGetChar()); } ConsolePutChar(13); while (!KEY_BUTTON); } Here is the call graph for this function:

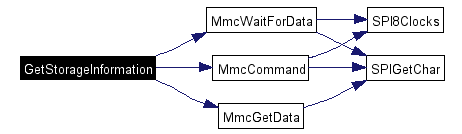

unsigned char GetStorageInformation (   )

Returns MMC Card Identification Register in diskSect. Definition at line 171 of file mmc.c. References DiskBlock::Raw::buf, diskSect, MmcCommand(), MmcGetData(), MmcWaitForData(), and DiskBlock::raw. Referenced by InitMMC(). { if (MmcCommand(0x4a,0,0,0,0)&0xfe) return 4; /* no storage info */ MmcWaitForData(); MmcGetData(30); ConsoleWrite("\rMMC Manufacturer#: "); ConsolePutUInt(diskSect.raw.buf[0]); ConsoleWrite("Product Name: "); ConsolePutChar(diskSect.raw.buf[3]); ConsolePutChar(diskSect.raw.buf[4]); ConsolePutChar(diskSect.raw.buf[5]); ConsolePutChar(diskSect.raw.buf[6]); ConsolePutChar(diskSect.raw.buf[7]); ConsolePutChar(diskSect.raw.buf[8]); ConsoleWrite(" Production date: "); ConsolePutUInt(diskSect.raw.buf[14]>>4); ConsoleWrite("/ "); ConsolePutUInt((diskSect.raw.buf[14]&0x0f)+1997); ConsolePutChar('\r'); ConsoleWrite("Media serial number: "); ConsolePutHex8(diskSect.raw.buf[10]); ConsolePutHex8(diskSect.raw.buf[11]); ConsolePutHex8(diskSect.raw.buf[12]); ConsolePutHex8(diskSect.raw.buf[13]); ConsolePutChar('\r'); /* print out card ident register for (c=0; c<30; c++){ if ((c&0x03)==0) ConsolePutChar(' '); ConsolePutHex8(diskSect.raw.buf[c]); } */ return 0; /* All OK return */ } Here is the call graph for this function:

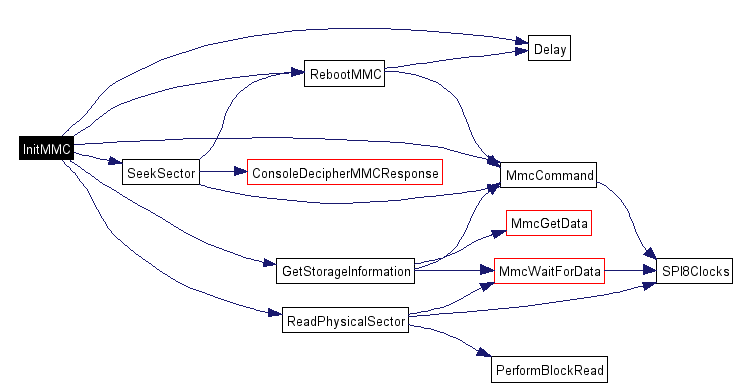

Public unsigned char InitMMC (   )

Start-up the MMC card. Returns 0 when successful and supports seek-before-read Returns 0x0e when successful but no support for seek-before-read Returns 1 when MMC card is not found Returns 2 when MMC card seems to be present but can't be read from. Definition at line 239 of file mmc.c. References DiskBlock::Raw::buf, Delay(), diskSect, GetStorageInformation(), Temp::i, MMC_NOT_SELECTED, MMC_OFF, MMC_XCS, MmcCommand(), NO, Public, DiskBlock::raw, ReadPhysicalSector(), RebootMMC(), SeekSector(), SPIPutChar, SPIPutCharWithoutWaiting, SPIWait, temp, and YES. Referenced by InitStorage(), and OpenFile(). { unsigned char c; //Switch off the MMC power supply MMC_OFF = YES; ConsoleWrite ("Init: MMC\r"); Delay(100); //Switch on the MMC power supply MMC_OFF = NO; Delay(100); /* Allow MMC some time and clock cycles to reset */ for (c=0; c<200; c++){ SPIPutCharWithoutWaiting(0xff); SPIWait(); } Delay(20); if (RebootMMC()) return 1; //not able to powerup; //An existing MMC card should be able to respond now. GetStorageInformation(); /* Set Block Size of 512 bytes (2 == 512 << 8) */ if ((c=MmcCommand(0x50,0,0,2,0))) return c|0x80; /* blocksize error */ /* Check if MMC supports interrupted data transfer */ /* This does a simple checksum check to see if interrupted and * non-interrupted read blocks are the same. */ /* This could be a function, so it is in braces for clarity purposes */ { if (SeekSector(0)) return 2; //Storage powerup failure if (ReadPhysicalSector()) return 2; //Storage powerup failure temp.i = diskSect.raw.buf[511]; for (c=0; c<250; c++){ temp.i += diskSect.raw.buf[c]; } if (SeekSector(0)) return 2;//Storage powerup failure /* Send some extra SPI clocks */ MMC_XCS = MMC_NOT_SELECTED; SPIPutCharWithoutWaiting(0xff); for (c=0; c<100; c++){ SPIPutChar(0xff); } SPIWait(); if (ReadPhysicalSector()){ ConsoleWrite("Interrupted read failed.\r"); ConsoleWrite("Using compatibility mode.\r"); return 0x0e; //ok but no support for seek-before-read }else{ //Check if received data was same temp.i -= diskSect.raw.buf[511]; for (c=0; c<250; c++){ temp.i -= diskSect.raw.buf[c]; } } if (temp.i) { /* Checksum does not match */ ConsoleWrite("This MMC has no support for interrupted read. "); ConsoleWrite("Using compatibility mode.\r"); return 0x0e; //ok but no support for seek-before-read } ConsoleWrite("\rInitMMC ok.\r"); } /* All OK return */ return 0; //ok and MMC supports seek-before-read } Here is the call graph for this function:

unsigned char MmcCommand (  unsigned char  c1, unsigned char  c2, unsigned char  c3, unsigned char  c4, unsigned char  c5 )

Do one MMC command and return the MMC SPI R1 response. Returns 0xff in case of timeout (relies on weak pull-up on the MISO pin). Note that the parameter bytes are used for temporary storage after they are written out. Definition at line 19 of file mmc.c. References MMC_NOT_SELECTED, MMC_OFF, MMC_SELECTED, MMC_XCS, NO, SPI8Clocks(), SPI_RESULT_BYTE, SPIGetChar(), SPIPutChar, SPIPutCharWithoutWaiting, and SPIWait. Referenced by GetStorageInformation(), InitMMC(), RebootMMC(), SeekSector(), and WritePhysicalSector(). { xdata char c; /* Note: c1, c2 are used for temporary variables after use! */ MMC_OFF = NO; //MMC should be powered, but switch power on just-in-case MMC_XCS = MMC_NOT_SELECTED; //put MMC on-line. // Provide clock edges before and after asserting MMC CS SPI8Clocks(8); MMC_XCS = MMC_SELECTED; SPI8Clocks(8); c=0; // If card still seems to be busy, give it some time... while ((SPIGetChar()!=0xff) && (c<100)){ ConsolePutChar('.'); c++; } // The bus should be stable high now if (SPI_RESULT_BYTE != 0xff){ ConsoleWrite("\rUnexpected busy signal from MMC. "); MMC_XCS = MMC_NOT_SELECTED; //drop MMC offline. return 0x81; //MMC unexpectedly Busy } #ifdef MMCDEBUG DebugMessage(" \x1b[7m"); ConsolePutChar('C'); ConsolePutHex8(c1); ConsolePutHex8(c2); ConsolePutHex8(c3); ConsolePutHex8(c4); ConsolePutHex8(c5); ConsolePutChar('|'); #endif // Send the MMC command SPIPutCharWithoutWaiting(c1); SPIPutChar(c2); SPIPutChar(c3); SPIPutChar(c4); SPIPutChar(c5); SPIPutChar(0x95); /* Valid CRC for init, then don't care */ SPIWait(); /* Now ok to use c1..c5 as temporaries (dirty but kool) */ // Wait for R1 style response (bit 7 low) from MMC #ifdef MMCDEBUG { c1=100; /* try max. 100 times */ while((c1--)&&((c2=SPIGetChar())&0x80)){ //wait for R1 or timeout // R1 response not detected, if it's not 0xff, print it for debugging. if (c2!=0xff){ConsolePutHex8(c2);ConsolePutChar('|');} } ConsolePutHex8(c2); DebugMessage("\x1b[0m "); } #else { c1=100; while((c1--)&&((c2=SPIGetChar())&0x80)) //wait for R1 or timeout ; } #endif return c2; //return the R1 response } Here is the call graph for this function:

void MmcGetData (  unsigned int  amountOctets  )

Read a Data Block from MMC. Use shared global pointer dataBufPtr declared in buffer.h. Does not affect MMC chip select signal. Warning: this is not the fastest way to read, use PerformBlockRead to read entire disk block. Definition at line 159 of file mmc.c. References DiskBlock::Raw::buf, dataBufPtr, diskSect, DiskBlock::raw, and SPIGetChar(). Referenced by GetStorageInformation(). { DebugMessage("<G"); dataBufPtr = diskSect.raw.buf; while (amountOctets--){ *dataBufPtr++=SPIGetChar(); } DebugMessage("G>"); } Here is the call graph for this function:

unsigned char MmcWaitForData (   )

MMC Wait For Data start token 0xfe. First any 0xFF's are read off the mmc. The first non-ff octet is examined. If it's the 0xfe data start token, everything is fine. If not, then some error has occurred. Since we're in an embedded system, it's unclear what we should do then. Current approach is to say all ok but make read block return 0xff's by dropping the MMC card offline. Before that we read "lots" of octets from the MMC to flush any pending data. Finally we return "ALL OK". It's not disasterous at least as long as we don't WRITE to MMC. Definition at line 102 of file mmc.c. References MMC_NOT_SELECTED, MMC_XCS, SPI8Clocks(), and SPIGetChar(). Referenced by GetStorageInformation(), ReadPhysicalSector(), and WritePhysicalSector(). { unsigned char c; DebugMessage("<t:"); //Token Wait // Wait until something else than 0xff is read from the bus do { c=SPIGetChar(); #ifdef MMCDEBUG if (c!=0xFF) ConsolePutHex8(c); //0xfe token or some erroneus byte #endif } while ((c == 0xff)); // Something was received from the bus? Might it actually be te // desired 0xFE data start token? if (c != 0xfe){ // No data start token, read fail. In an OS an error message would display. // Since we're in an embedded system, it's unclear what we should do now. // Current approach is to say all ok but make read block return 0xff's. // It's not disasterous at least as long as we don't WRITE to MMC. // Flush any data that might be pending from the MMC. #ifdef MMCLONGDEBUG { unsigned int i; ConsoleWrite("\rMMCWaitForData failed. "); ConsoleWrite("Expected 0xFE token, received: "); for (i=0;i<550;i++){ ConsolePutHex8(c); c=SPIGetChar(); } } #else SPI8Clocks(200); /* Flush MMC by sending lots of FF's to it */ SPI8Clocks(200); SPI8Clocks(200); #endif MMC_XCS = MMC_NOT_SELECTED; //Drop MMC offline now. DebugMessage("!t>"); return 5; //Return error } DebugMessage("t>"); //Exit Token Wait return 0; } Here is the call graph for this function:

void PerformBlockRead (   )

Perform the actual reading of 512 octets from MMC. Note: This is the fast routine to read complete disk block Definition at line 319 of file mmc.c. References DiskBlock::Raw::buf, dataBufPtr, diskSect, DiskBlock::raw, SPI_RESULT_BYTE, SPIPutCharWithoutWaiting, and SPIWait. Referenced by ReadPhysicalSector(). { #ifdef MMCDEBUG ConsoleWrite("<R"); //Actual Read #endif /* Use shared global buffer pointer for speed*/ /* Loop unrolled 16 times for SPEED! :) */ dataBufPtr = diskSect.raw.buf; while (dataBufPtr < diskSect.raw.buf+512){ SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; SPIPutCharWithoutWaiting(0xff); SPIWait(); *dataBufPtr++=SPI_RESULT_BYTE; } #ifdef MMCDEBUG ConsoleWrite("R>"); #endif }

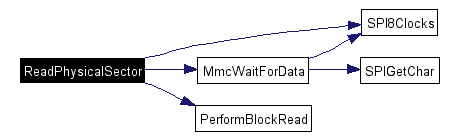

Public unsigned char ReadPhysicalSector (   )

Perform block read of previously sought sector to diskSect. Definition at line 464 of file mmc.c. References LED_OFF, LED_ON, MMC_NOT_SELECTED, MMC_SELECTED, MMC_XCS, MmcWaitForData(), PerformBlockRead(), Public, RED_LED, and SPI8Clocks(). Referenced by InitMMC(), and ReadDiskSector(). { RED_LED = LED_ON; /* Disk Read LED on */ MMC_XCS = MMC_SELECTED; MmcWaitForData(); PerformBlockRead(); /* generate SPI clock edges to finish up the command */ SPI8Clocks(4); //Send 8*4=32 clocks (4 ff's) to MMC to be nice. MMC_XCS = MMC_NOT_SELECTED; SPI8Clocks(4); //Again, give the poor MMC some clocks, it likes them. RED_LED = LED_OFF; /* Disk Read LED off */ return 0; //ok return } Here is the call graph for this function:

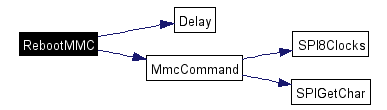

unsigned char RebootMMC (   )

Try to switch on the MMC. Definition at line 211 of file mmc.c. References Delay(), and MmcCommand(). Referenced by InitMMC(), and SeekSector(). { unsigned char c; //Try (indefinitely) to switch on the MMC card do{ /* MMC Don't use CRC - seems to be required by some MMC cards? */ MmcCommand(0x7B,0,0,0,0); /* MMC Init, command 0x40 should return 0x01 (idle) if all is ok. */ }while (MmcCommand(0x40,0,0,0,0)!=0x01); // 0x01(idle) response detected. ConsoleWrite("Card found, starting... "); /*Try max 255 times MMC Wake-up call: set to Not Idle (mmc returns 0x00)*/ c=255; while ((c--)&&(MmcCommand(0x41,0,0,0,16))){ Delay(10); if (c==1){ //timeout ConsoleWrite("Failed.\r"); return 2; /* Not able to power up mmc */ } } ConsoleWrite("Ok.\r"); return 0; } Here is the call graph for this function:

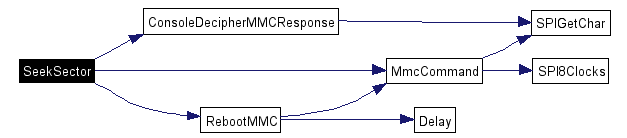

Public unsigned char SeekSector (  unsigned long  sectorN  )

Perform MMC Seek Command for offset sectorN*512. Definition at line 418 of file mmc.c. References Address::b, Address::B::b0, Address::B::b1, Address::B::b2, ConsoleDecipherMMCResponse(), Address::l, MMC_NOT_SELECTED, MMC_XCS, MmcCommand(), Public, RebootMMC(), and sectorAddress. Referenced by InitMMC(), PrepareToReadDiskSector(), and ReadDiskSector(). { unsigned char c; #ifdef MMCDEBUG ConsoleWrite("{s"); //Seek called #endif do{ sectorAddress.l = sectorN * 2; //convert to bytes (combined with 8bit shift) c=MmcCommand(0x51,sectorAddress.b.b2,sectorAddress.b.b1, sectorAddress.b.b0, 0); sectorAddress.l = sectorAddress.l >> 1; //convert back to blocks //if MMC returs "nothing" (0xff) or 0x81(busy), //toggle chip select and retry if ((c==0xff)||(c==0x81)){ c=0xff; RebootMMC(); } if (c==0x01){ //MMC says "busy" c=0xff; //try again } }while(c==0xff); //repeat until we get signal from MMC. if ((c & 0xfe)){ //MMC returns something else than idle or busy signal ConsoleDecipherMMCResponse(c); MMC_XCS = MMC_NOT_SELECTED; #ifdef MMCDEBUG ConsoleWrite("!s}"); #endif return 7; /* failed to execute mmc command */ } MMC_XCS = MMC_NOT_SELECTED; #ifdef MMCDEBUG ConsoleWrite("s}"); #endif return 0; //ok return } Here is the call graph for this function:

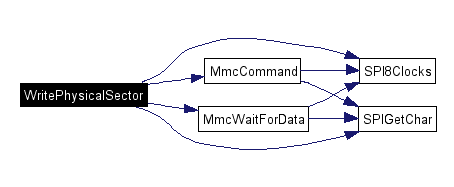

unsigned char WritePhysicalSector (   )

Perform MMC block write from *dataBufPtr to sector sectorAddress.l. Definition at line 485 of file mmc.c. References Address::b, Address::B::b0, Address::B::b1, Address::B::b2, DiskBlock::Raw::buf, dataBufPtr, diskSect, Address::l, LED_OFF, LED_ON, MMC_NOT_SELECTED, MMC_SELECTED, MMC_XCS, MmcCommand(), MmcWaitForData(), DiskBlock::raw, RED_LED, sectorAddress, SPI8Clocks(), SPIGetChar(), SPIPutCharWithoutWaiting, and SPIWait. Referenced by WriteDiskSector(). { unsigned char c; #ifdef MMCDEBUG ConsoleWrite("<W"); #endif RED_LED = LED_ON; sectorAddress.l = sectorAddress.l * 2; //convert to bytes (combined with 8bit shift) c=MmcCommand(24 | 0x40 ,sectorAddress.b.b2,sectorAddress.b.b1, sectorAddress.b.b0, 0); sectorAddress.l = sectorAddress.l >> 1; //convert back to blocks MMC_XCS = MMC_SELECTED; dataBufPtr = diskSect.raw.buf; SPIPutCharWithoutWaiting(0xFE); SPIWait(); for (c=0;c<128;c++){ SPIPutCharWithoutWaiting(*dataBufPtr++); SPIWait(); SPIPutCharWithoutWaiting(*dataBufPtr++); SPIWait(); SPIPutCharWithoutWaiting(*dataBufPtr++); SPIWait(); SPIPutCharWithoutWaiting(*dataBufPtr++); SPIWait(); } MmcWaitForData(); //Wait for 0xFE token while (SPIGetChar()==0) ; // Wait until MMC not busy. #ifdef MMCDEBUG ConsoleWrite("W>"); #endif SPI8Clocks(16); MMC_XCS = MMC_NOT_SELECTED; SPI8Clocks(16); RED_LED = LED_OFF; } Here is the call graph for this function:

---
