aviplay.c File Reference

Experimental functions to play sound track from AVIfile. More...

This graph shows which files directly or indirectly include this file:

Included by dependency graph

Go to the source code of this file.

Defines

#define btUNKNOWN   0
#define btLIST   1
#define btSTR   2
#define btAUDIO   3
#define GetLongWord()

Functions

void GetAVIBlock ()
unsigned char PlayAvi ()
 Try to play an avi file at current sector.

Detailed Description

Experimental functions to play sound track from AVIfile.

Definition in file aviplay.c.

Define Documentation

#define btAUDIO   3


Definition at line 7 of file aviplay.c.

Referenced by GetAVIBlock().

#define btLIST   1


Definition at line 5 of file aviplay.c.

Referenced by GetAVIBlock().

#define btSTR   2


Definition at line 6 of file aviplay.c.

#define btUNKNOWN   0


Definition at line 4 of file aviplay.c.


#define GetLongWord (   )


Value:

{instream.b.b0 = FGetChar(); \
 instream.b.b1 = FGetChar();\
 instream.b.b2 = FGetChar();\
 instream.b.b3 = FGetChar();}

Definition at line 10 of file aviplay.c.

Referenced by GetAVIBlock().

Function Documentation

void GetAVIBlock (   )


Definition at line 15 of file aviplay.c.

References addressType, AvailableProcessorTime(), btAUDIO, btLIST, DiskBlock::Raw::buf, dataBufPtr, diskSect, FGetChar(), fileSize, GetLongWord, GREEN_LED, Temp::i, Address::l, LED_OFF, LED_ON, MP3_DREQ, MP3_XDCS, Mp3DeselectData, Mp3SelectData, DiskBlock::raw, ReadDiskSector(), sectorAddress, SPIPutChar, SPIPutCharWithoutWaiting, SPIWait, and temp.

Referenced by PlayAvi().

00015                   {
00016
00017   xdata addressType instream;
00018   xdata unsigned char blockType = 0;
00019   bit isPadded = 0;
00020
00021   GetLongWord();
00022   if ((instream.b.b2 == 'w') && (instream.b.b3 == 'b')){
00023     blockType = btAUDIO;
00024   }
00025   if (instream.l==1414744396){ //LIST
00026     blockType = btLIST;
00027   }
00028   GetLongWord();
00029   //instream.l should now contain the chunk size.
00030   //its length must be even by spec. if it's odd, a pad byte is
00031   //in the file but its NOT part of chunk data.
00032   if (instream.b.b0&1){
00033     isPadded = 1; //There is a pad byte to make chunk len even
00034   }else{
00035     isPadded = 0;
00036   }
00037
00038
00039   if (blockType == btAUDIO){
00040     //--------THIS PACKET IS SENT TO VS10xx---------
00041     //superbly hilarious effects could happen if the avifile has
00042     //more than 1 soundtrack as all of them would be sent to VS10xx
00043
00044     while(instream.l){
00045       unsigned char c;
00046
00047       while ((instream.l>16)&&(dataBufPtr < diskSect.raw.buf+496)){
00048         //We have at least 16 octets of continuous stream in mem.
00049         if (!MP3_DREQ){
00050           GREEN_LED = LED_ON;
00051           while (!MP3_DREQ){
00052             Mp3DeselectData();
00053             AvailableProcessorTime();
00054           }
00055         }
00056         GREEN_LED = LED_OFF;
00057         Mp3SelectData();
00058         SPIPutCharWithoutWaiting(*dataBufPtr++);
00059         SPIWait();
00060         SPIPutChar(*dataBufPtr++);
00061         SPIPutChar(*dataBufPtr++);
00062         SPIPutChar(*dataBufPtr++);
00063         SPIPutChar(*dataBufPtr++);
00064         SPIPutChar(*dataBufPtr++);
00065         SPIPutChar(*dataBufPtr++);
00066         SPIPutChar(*dataBufPtr++);
00067         SPIPutChar(*dataBufPtr++);
00068         SPIPutChar(*dataBufPtr++);
00069         SPIPutChar(*dataBufPtr++);
00070         SPIPutChar(*dataBufPtr++);
00071         SPIPutChar(*dataBufPtr++);
00072         SPIPutChar(*dataBufPtr++);
00073         SPIPutChar(*dataBufPtr++);
00074         SPIPutChar(*dataBufPtr++);
00075         instream.l-=16;
00076         fileSize-=16;
00077         SPIWait();
00078       }
00079
00080       MP3_XDCS=1;
00081       instream.l--;
00082       c=FGetChar(); //data comes first until end of sector and
00083                     //then a new sector is loaded automagically.
00084       MP3_XDCS=0;
00085       SPIPutCharWithoutWaiting(c);
00086       //SPIWait();
00087     }
00088     MP3_XDCS=1;
00089   }else if (blockType == btLIST){
00090     ConsoleWrite("\rAVI: List of ");
00091     GetLongWord();
00092     ConsolePutChar(instream.b.b0);
00093     ConsolePutChar(instream.b.b1);
00094     ConsolePutChar(instream.b.b2);
00095     ConsolePutChar(instream.b.b3);
00096
00097   }else{
00098     //We don't need this chunk. Let's quickly skip over it.
00099
00100     //Is pad byte insertion needed?
00101     if (isPadded){
00102       instream.l++; //instream.l contains chunk size
00103       isPadded = 0;
00104     }
00105
00106     //Skip to the end of sector
00107     if (instream.l>(temp.i=diskSect.raw.buf+512-dataBufPtr)){
00108       //The packet continues after end of sector
00109       instream.l -= temp.i;
00110       fileSize -= temp.i;
00111       sectorAddress.l++; //Sector handled, go to next.
00112       dataBufPtr = 0; //Complete sector is handled.
00113     }
00114
00115     //Skip unnecessary sectors
00116     if (instream.l>512){
00117       while (instream.l>512){
00118         sectorAddress.l++;
00119         instream.l -= 512;
00120         fileSize -= 512;
00121       }
00122       dataBufPtr = 0; //Initialize for next call to FGetChar();
00123     }
00124
00125     //Read last sector into memory
00126     if (dataBufPtr == 0){
00127       ReadDiskSector(sectorAddress.l);
00128       dataBufPtr = diskSect.raw.buf;
00129     }
00130     while (instream.l--){
00131       dataBufPtr++;
00132     }
00133   }//nothing interesting,skip block
00134
00135   if (isPadded){
00136     FGetChar();
00137   }
00138
00139 }

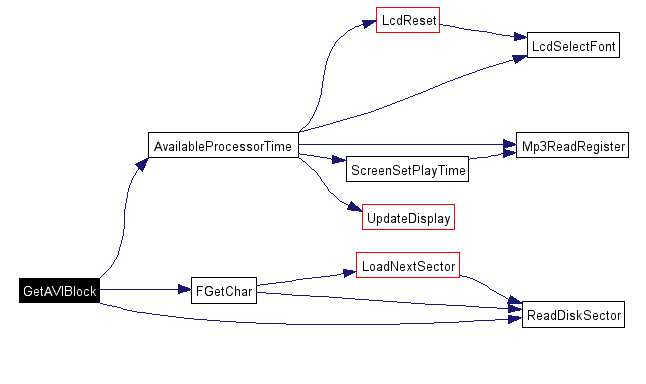

Here is the call graph for this function:

unsigned char PlayAvi (   )


Try to play an avi file at current sector.

Returns 0x11 if AVI header is not found, 0 if the file is played.

Definition at line 144 of file aviplay.c.

References DiskBlock::Raw::buf, dataBufPtr, diskSect, fileSize, GetAVIBlock(), Address::l, DiskBlock::raw, ReadDiskSector(), and sectorAddress.

Referenced by PlayDiskSectors().

00144                        {
00145
00146   ReadDiskSector(sectorAddress.l);
00147
00148   //DumpDiskSector();
00149
00150   if (diskSect.raw.buf[8]!='A') return 0x11;
00151   if (diskSect.raw.buf[9]!='V') return 0x11;
00152   if (diskSect.raw.buf[10]!='I') return 0x11;
00153   ConsoleWrite("\rPlayAvi()\r");
00154
00155   dataBufPtr=diskSect.raw.buf+12;
00156
00157   while(fileSize){
00158     GetAVIBlock();
00159   }
00160
00161   return 0;
00162 }

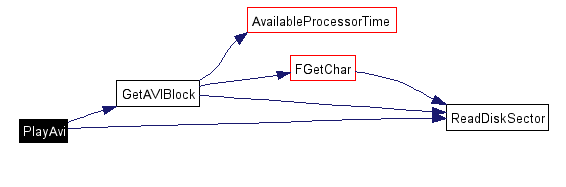

Here is the call graph for this function:
