player.c File Reference

VLSI Modular Player Main file. More...

#include "board.h"
#include "lcd.h"
#include "filesys.h"
#include "vs10xx.h"
#include "storage.h"
#include "display.h"
#include "string.h"
#include "ui.h"
#include "mmc.h"
#include "record.h"
#include "loud_sa.c"

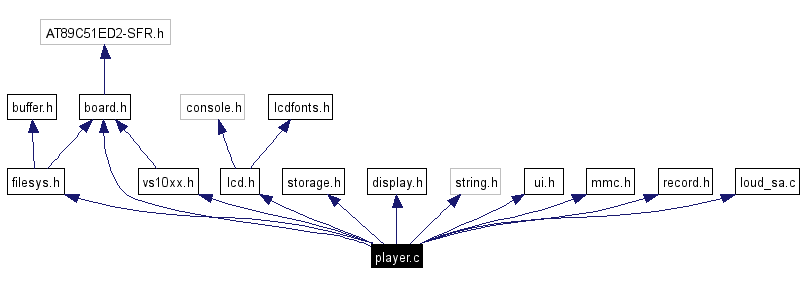

Include dependency graph for player.c:

Include dependency graph

Go to the source code of this file.

Defines

#define u_int8   code unsigned char
 typedef for loading patch code

#define u_int16   code unsigned int
 typedef for loading patch code

#define UI_RETURN_DELAY   150
 How much to wait for button pressed before returning to title.


Functions

void timer0_interrupt (void)
 User Interface Timer interrupt.

void LoadPatch ()
 Load a patch code to VS10xx.

void StartPatch ()
 Start patch code.

void ScreenSetPlayTime ()
 Sets playing time and mode icon to left display title.

void AvailableProcessorTime ()
 This is called when there is free processor time, implement externally.

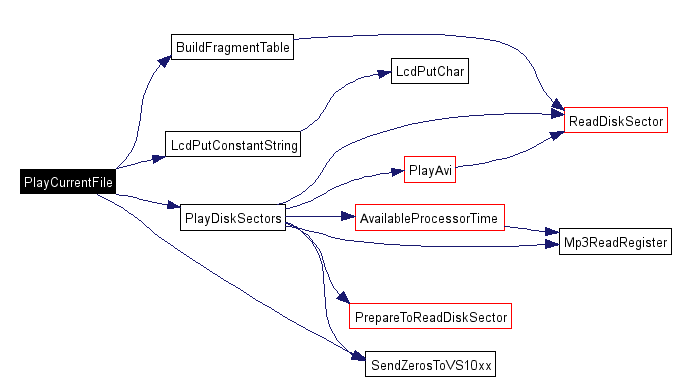

void PlayCurrentFile ()
 Plays a disk file.

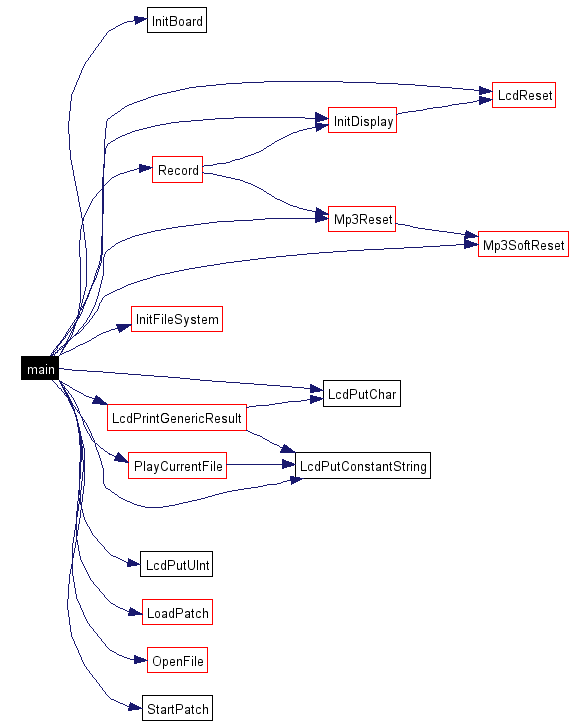

void main ()
 Program Entry Point.


Variables

xdata playingstatetype playingState = PS_NORMAL
 Playing State Global, 0=normal playing, 1=abort playing.

unsigned char intlevel = 0
 Current interrupt level.

xdata unsigned char userInterfaceDelayElapsed = 0
 Interrupt-driven flag to reduce unnecessary UI updates.

xdata uimodetype uiMode = UI_SPEC
 Current User Interface mode (Title, Volume, ...).

xdata unsigned char SPMax = 0

Detailed Description

VLSI Modular Player Main file.

This file contains the main() function. It's also the main playground for player UI development. Many functions will be transferred to a new module when they're ok.

Definition in file player.c.

Define Documentation

#define u_int16   code unsigned int


typedef for loading patch code

Definition at line 206 of file player.c.

#define u_int8   code unsigned char


typedef for loading patch code

Definition at line 204 of file player.c.

#define UI_RETURN_DELAY   150


How much to wait for button pressed before returning to title.

Definition at line 218 of file player.c.

Referenced by AvailableProcessorTime().

Function Documentation

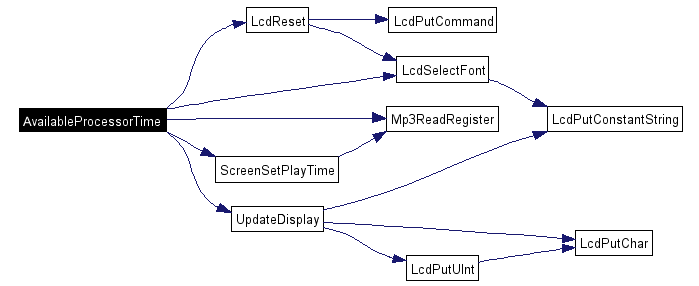

void AvailableProcessorTime (   )


This is called when there is free processor time, implement externally.

The basic task of this function is to implement the player user interface.

Local variables:

  • volume: Current volume setting

  • bass: Current bass enhancer setting

  • treble: Current treble enhancer setting

  • reclevel: Current recording level setting

  • uiReturnDelay: Counts down to returning to UI mode 0 (title screen)

Bass/Treble setting calculation

There are 2 or 4 adjustments possible:

  • Bass Frequency (1011B/E, 1002, 10x3) : 2..15 -> 20..1500 Hz
  • Bass boost (1011B/E, 1002, 10x3) : 0..15 -> 0ff..+15dB)
  • Treble Frequency (1011E, 10x3) : 0..15 -> 0..15kHz
  • Treble level (1011E, 10x3) : -8..+7 -> -12..+10.5dB

In this software, all are adjusted based from a single setting (0..128) for bass and another for treble. You may wish to allow user to control frequency and level separately or set fixed frequencies for a known speaker type. This algorithm increases the frequency range of adjustment with the increasing level.

Definition at line 327 of file player.c.

References displayStyle, displayTitle, displayValue, DS_NO_YES, DS_PERCENTAGE, DS_RAWTEXT, DS_TEXT, KEY_BUTTON, KEY_FARLEFT, KEY_FARRIGHT, lcdFont_barchars, lcdFont_vertical_barchars, LcdReset(), LcdSelectFont(), Mp3ReadRegister(), Mp3SetVolume, Mp3WriteRegister, playingState, PS_CUE, PS_END_OF_SONG, PS_NEXT_SONG, PS_NORMAL, PS_PREVIOUS_SONG, PS_RECORDING, PS_REWIND, ScreenSetPlayTime(), SPI_AICTRL1, SPI_BASS, SPIPutChar, SPIWait, UI_BASS, UI_CUE, UI_END_OF_MODES, UI_INFO, UI_RECLEVEL, UI_RETURN_DELAY, UI_SPEC, UI_STOP, UI_TITLE, UI_TREBLE, UI_VOLUME, uiMode, UpdateDisplay(), and userInterfaceDelayElapsed.

Referenced by GetAVIBlock(), PlayDiskSectors(), and Record().

00327                              {
00328
00332   static xdata unsigned char volume = 20;
00333
00335   static xdata unsigned char bass = 0;
00336
00338   static xdata unsigned char treble = 64; //middle setting = 0
00339
00341   static xdata unsigned char reclevel = 50;
00342
00343   unsigned int i; //temp variable
00344
00345   static bit bassUpdateNeeded;
00346
00350   static unsigned char uiReturnDelay=0;
00351
00352   if (!userInterfaceDelayElapsed){
00353     return; /* Not yet time to do user interface stuff */
00354   }
00355
00356   userInterfaceDelayElapsed = 0;
00357
00358
00359   // User Interface Modes
00360   // Return to UI_TITLE after long period of button inactivity
00361
00362   if (uiReturnDelay == 0){
00363     if ((uiMode != UI_SPEC)&&(uiMode != UI_CUE))
00364       uiMode = UI_TITLE;
00365     else{
00366     }
00367   }else{
00368     uiReturnDelay--;
00369   }
00370
00371 #ifndef VS1003
00372   if (uiMode==UI_SPEC) //Only VS1003 has spectrum analyzer
00373     uiMode++;
00374   if (uiMode==UI_RECLEVEL) //Only record in VS1003 chips
00375     uiMode++;
00376 #endif
00377
00378   if (uiMode==UI_INFO)
00379     uiMode++; //Nothing interesting currently in screen UI_INFO.
00380   if (uiMode==UI_STOP)
00381     uiMode++; //Nothing interesting currently in screen UI_STOP.
00382
00383   /* Screen updates */
00384   switch(uiMode){
00385
00386   case UI_TITLE:  //Playing time, song title
00387
00388     displayStyle = DS_TEXT;
00389     ScreenSetPlayTime();
00390
00391     if (playingState==PS_RECORDING){
00392       displayStyle = DS_PERCENTAGE;
00393     }
00394
00395     break;
00396
00397   case UI_STOP: //Ask if the user wants to stop
00398     displayStyle = DS_NO_YES;
00399     strcpy (displayTitle, "Stop?   ");
00400     break;
00401
00402   case UI_CUE: //Ask if the user wants to fast forward or rewind
00403     displayStyle = DS_RAWTEXT;
00404     strcpy (displayTitle, "REW/CUE  <-   ->");
00405
00406     //i = Mp3ReadRegister(SPI_HDAT1);
00407     //displayTitle[5] = lcd_hexchars[i>>12];
00408     //displayTitle[6] = lcd_hexchars[(i>>8)&0x0f];
00409     //displayTitle[7] = lcd_hexchars[(i>>4)&0x0f];
00410     //displayTitle[8] = lcd_hexchars[i&0x0f];
00411
00412     break;
00413
00414   case UI_VOLUME: //Show volume bar
00415     LcdSelectFont(lcdFont_barchars);
00416     displayStyle = DS_PERCENTAGE;
00417     strcpy(displayTitle,"Volume: ");
00418     displayValue = (100-(volume>>1));
00419     if (displayValue<0) displayValue = 0;
00420     break;
00421
00422   case UI_BASS: //Show bass bar
00423     LcdSelectFont(lcdFont_barchars);
00424     displayStyle = DS_PERCENTAGE;
00425     strcpy(displayTitle,"Bass:   ");
00426     displayValue = (bass/5)*4;
00427     if (displayValue<1) displayValue = 1;
00428     break;
00429
00430   case UI_TREBLE: //Show treble bar
00431     LcdSelectFont(lcdFont_barchars);
00432     displayStyle = DS_PERCENTAGE;
00433     strcpy(displayTitle,"Treble: ");
00434     displayValue = (treble/5)*4;
00435     if (displayValue<1) displayValue = 1;
00436     break;
00437
00438   case UI_RECLEVEL: //Show recording level
00439
00440     if (playingState==PS_RECORDING){
00441       LcdSelectFont(lcdFont_barchars);
00442       displayStyle = DS_PERCENTAGE;
00443       strcpy(displayTitle,"RecLevel");
00444       displayValue = (reclevel);
00445       if (reclevel==0){
00446         strcpy(displayTitle,"RecLevel <Auto> ");
00447         displayStyle = DS_RAWTEXT; //Reveal the "auto" text
00448       }
00449     }else{
00450       //Not in recording
00451       displayStyle = DS_NO_YES;
00452       strcpy (displayTitle, "Record? ");
00453     }
00454     break;
00455
00456
00457   case UI_SPEC: // Spectrum analyzer
00458
00459     if (playingState == PS_RECORDING){
00460       uiMode++; //Don't show specana when recording
00461     }
00462
00463     LcdSelectFont(lcdFont_vertical_barchars);
00464     displayStyle = DS_RAWTEXT;
00465     ScreenSetPlayTime();
00466
00467     // Request to read Spectrum Analyzer register
00468     Mp3WriteRegister(7, 0x18, 0x04);
00469
00470     // Read Spectrum Analyzer registers
00471     {
00472       for (i=0;i<8;i++) { //for each band i in [0..7]
00473         signed char thisband = Mp3ReadRegister(6);
00474
00475         /* thisband now has spectrum value 0..63. We adjust it a little
00476            for best image on the evakit LCD. You also get peak values
00477            etc from the chip but we don't use them in the evakit screen.
00478            we use 8 bands, but up to 23 are obtainable from the chip. */
00479
00480         thisband &= 63;                /* mask all but level info */
00481         thisband >>= 1;                /* LCD resolution is not high */
00482         thisband -= 3;                 /* base offset */
00483         if (i==0) thisband -= 2;       /* decrease bass bar level */
00484         if (i==6) thisband += 1;       /* increase treble bar level */
00485         if (i==7) thisband += 1;       /* increase treble bar level */
00486         if (thisband>7) thisband = 7;  /* high limit */
00487         if (thisband<0) thisband =' '; /* low limit */
00488
00489         displayTitle[i+8] = thisband; //Store to display mem
00490
00491       }//for each band
00492     }
00493     break;
00494
00495   } //switch(uiMode)
00496
00497   // Buttons handler
00498   // Perform mode-dependent button handling
00499
00500   if ((KEY_BUTTON) && (uiReturnDelay < UI_RETURN_DELAY-20)){
00501     LcdReset();
00502     uiMode++;
00503     uiReturnDelay = UI_RETURN_DELAY;
00504   }
00505
00506   switch(uiMode){
00507
00508   case UI_TITLE:
00509   case UI_SPEC:
00510
00511     if (KEY_FARRIGHT){
00512       playingState = PS_NEXT_SONG; /* Request */
00513     }
00514     if (KEY_FARLEFT){
00515       playingState = PS_PREVIOUS_SONG; /* Request */
00516     }
00517     break;
00518
00519
00520   case UI_VOLUME:
00521
00522     if (KEY_FARLEFT){
00523       uiReturnDelay = UI_RETURN_DELAY;
00524       if (volume++ == 254) volume = 254; //Change + limit to 254 (minimum vol)
00525       Mp3SetVolume(volume,volume);
00526     }
00527
00528     if (KEY_FARRIGHT){
00529       uiReturnDelay = UI_RETURN_DELAY;
00530       if (volume-- == 0) volume = 0; //Change + limit to 0 (maximum volume)
00531       Mp3SetVolume(volume,volume);
00532     }
00533     break; // UI_VOLUME
00534
00535   case UI_BASS:
00536   case UI_TREBLE: //BASS and TREBLE use the same VS10xx register
00537     bassUpdateNeeded = 0;
00538
00539     //First let's see if a key is pressed; does the user want to set level?
00540
00541     if (uiMode==UI_BASS){ //BASS screen is active
00542
00543       if (KEY_FARLEFT){
00544         bassUpdateNeeded = 1;
00545         if (bass-- == 0) bass = 0; //Change + limit to 0 (OFF setting)
00546       }
00547       if (KEY_FARRIGHT){
00548         bassUpdateNeeded = 1;
00549         if (bass++ == 127) bass = 127; //Change + limit to 127 (max setting)
00550       }
00551
00552     }else{ //TREBLE screen is active
00553
00554       if (KEY_FARLEFT){
00555         bassUpdateNeeded = 1; //SCI_BASS is for both bass and treble
00556         if (treble-- == 0) treble = 0; //Change + limit to 0 (OFF setting)
00557       }
00558       if (KEY_FARRIGHT){
00559         bassUpdateNeeded = 1; //SCI_BASS is for both bass and treble
00560         if (treble++ == 127) treble = 127; //Change + limit to 127 (max)
00561       }
00562
00563     }
00564
00565
00566     if (bassUpdateNeeded){
00567       unsigned int newBassRegister;
00568
00569       //User has pushed button to alter bass/treble register
00570       //calculate new value
00571
00587       //Let's start from bass frequency setting.
00588       //min(0) should give 2 (20Hz), max(127) should give 15 (150Hz)
00589       newBassRegister = (bass + 23) / 10; //into bits 3..0, clear hibits
00590
00591       //Bass boost level.
00592       //min(0) should give 0, max(127) should give 15
00593       newBassRegister |= (bass>>3)<<4; //insert to bits 7..4
00594
00595       //Then the treble frequency
00596       //min(0) should give 15(15kHx), max(127) should give 2(2kHz)
00597       newBassRegister |= (((148-treble)>>3)+2)<<8; //insert into bits 11..8
00598
00599       //Finally the treble value (-8..7)
00600       //min(0) should give -8, max(127) should give 7;
00601       newBassRegister |= ((treble>>3)-8)<<12; //insert into bits 15..12
00602
00603
00604       uiReturnDelay = UI_RETURN_DELAY;
00605
00606       if (Mp3ReadRegister(SPI_BASS)!=newBassRegister){
00607         Mp3WriteRegister(SPI_BASS,newBassRegister>>8,newBassRegister&0xff);
00608       }
00609
00610       //i = newBassRegister;
00611       //displayTitle[4] = lcd_hexchars[i>>12];
00612       //displayTitle[5] = lcd_hexchars[(i>>8)&0x0f];
00613       //displayTitle[6] = lcd_hexchars[(i>>4)&0x0f];
00614       //displayTitle[7] = lcd_hexchars[i&0x0f];
00615
00616
00617     }
00618
00619     break; // UI_BASS and UI_TREBLE
00620
00621
00622   case UI_RECLEVEL:
00623
00624     if (playingState==PS_RECORDING){
00625       if (KEY_FARRIGHT){
00626         uiReturnDelay = UI_RETURN_DELAY;
00627         if (reclevel++ == 100){
00628           reclevel = 100;
00629         }
00630         Mp3WriteRegister(SPI_AICTRL1,
00631                          ((int)reclevel*32)>>8,((int)reclevel*32)&0xff);
00632         SPIPutChar(0);SPIWait();
00633       }
00634
00635       if (KEY_FARLEFT){
00636         uiReturnDelay = UI_RETURN_DELAY;
00637         if (reclevel-- == 0){
00638           reclevel = 0;
00639         }
00640         Mp3WriteRegister(SPI_AICTRL1,
00641                          ((int)reclevel*32)>>8,((int)reclevel*32)&0xff);
00642         SPIPutChar(0);SPIWait();
00643       }
00644     }else{
00645       //Not in recording
00646       if (KEY_FARRIGHT){
00647         //Enter recording mode
00648         playingState=PS_RECORDING; //request to record
00649       }
00650     }
00651     break; // UI_RECLEVEL
00652
00653   case UI_STOP:
00654
00655     if (KEY_FARRIGHT){
00656       playingState = PS_END_OF_SONG; /* Request to abort playing */
00657     }
00658     break; // UI_STOP
00659
00660   case UI_CUE:
00661
00662     if (playingState == PS_NORMAL){ /* Only control when PS_NORMAL */
00663       if (KEY_FARRIGHT){
00664         uiReturnDelay = UI_RETURN_DELAY; /* Don't go back to title just yet */
00665         playingState = PS_CUE; /* Request */
00666       }
00667       if (KEY_FARLEFT){
00668         uiReturnDelay = UI_RETURN_DELAY;
00669         playingState = PS_REWIND; /* Request */
00670       }
00671     }
00672
00673     break; // UI_SKIP
00674
00675   case UI_END_OF_MODES:
00676     uiMode = UI_TITLE;
00677     break; // UI_END_OF_MODES
00678
00679
00680   } //End Switch
00681
00682
00683   // Draw screen
00684   UpdateDisplay();
00685 }

Here is the call graph for this function:

void LoadPatch (   )


Load a patch code to VS10xx.

Definition at line 260 of file player.c.

References atab, CODELEN, Delay(), dtab, Temp::i, Mp3WriteRegister, and temp.

Referenced by main().

00260                 {
00261   ConsoleWrite ("Loading patch.\r");
00262   for (temp.i=0; temp.i < CODELEN; temp.i++) {
00263     Mp3WriteRegister(atab[temp.i], dtab[temp.i]>>8, dtab[temp.i]&0xff);
00264    }
00265   Delay(10);
00266 }

Here is the call graph for this function:

void main (   )


Program Entry Point.

In the final program, main() should be very small. Currently it's the playground for developing the player functionality. Most of it will be cleared away to new functions soon.

Definition at line 733 of file player.c.

References Temp::c, currentFileName, DS_STATIC, InitBoard(), InitDisplay(), InitFileSystem(), KEY_BUTTON, KEY_FARLEFT, KEY_FARRIGHT, KEY_LEFT, KEY_RIGHT, LcdLocateLine2, LcdPrintGenericResult(), LcdPutChar(), LcdPutConstantString(), LcdPutUInt(), LcdReset(), LoadPatch(), Mp3Reset(), Mp3SoftReset(), OpenFile(), PlayCurrentFile(), playingState, PS_END_OF_SONG, PS_NEXT_SONG, PS_NORMAL, PS_PREVIOUS_SONG, PS_RECORDING, Record(), SPMax, StartPatch(), temp, UI_SPEC, UI_TITLE, and uiMode.

00733            {
00734
00735   unsigned int currentFile;
00736
00737   InitBoard();
00738
00739   // Start "User Interface" timer
00740   ET0 = 1;
00741   EA = 1;
00742   TR0 = 1;
00743
00744   //LcdSplashScreen();
00745   InitDisplay (DS_STATIC,"        ","        ",0);
00746
00747   ConsoleWrite ("\rVLSIPlayer\rStarting up.\r\r");
00748
00749   LcdReset();
00750   LcdPutConstantString ("Filesys ");
00751   LcdLocateLine2();
00752   LcdPrintGenericResult (InitFileSystem());
00753
00754   Mp3Reset();
00755   LoadPatch();
00756   StartPatch();
00757
00758   // If left button is pressed during boot, enter recording.
00759   if (KEY_FARLEFT){
00760     while(KEY_LEFT)
00761       ;
00762     Record();
00763   }
00764
00765
00766 #ifdef VS1003
00767   uiMode = UI_SPEC;   //For VS1003 default to SPECTRUM ANALYZER screen
00768 #else
00769   uiMode = UI_TITLE;  //For others, default to TITLE screen
00770 #endif
00771
00772   playingState = PS_NEXT_SONG;
00773   currentFile = 1;
00774
00775   while (1){
00776     ConsoleWrite("SPMax: ");ConsolePutHex8(SPMax);
00777     ConsoleWrite("PlayingState: ");ConsolePutHex8(playingState);
00778
00779     // has someone requested to record?
00780     if (playingState == PS_RECORDING){
00781       uiMode = UI_TITLE;
00782       playingState = Record(); //record returns PS_NEXT_SONG or PS_RECORDING
00783       while (KEY_BUTTON)
00784         ; //Wait until button is depressed
00785       ConsoleWrite("\rFinished recording.\r");
00786       currentFile = 1;
00787       playingState == PS_NEXT_SONG;
00788     }
00789
00790     if (OpenFile(currentFile)){
00791       currentFile = 1;
00792       if (OpenFile(currentFile)){
00793         LcdReset();
00794         LcdPutConstantString("No files.");
00795         while(1);
00796       }
00797     }
00798
00799     LcdReset();
00800     LcdPutConstantString("File ");
00801     LcdPutUInt(currentFile);
00802     LcdLocateLine2();
00803     for (temp.c=0; temp.c<8; temp.c++){
00804       LcdPutChar(currentFileName[temp.c]);
00805     }
00806
00807
00808     while ((KEY_BUTTON)||(KEY_FARLEFT)||(KEY_FARRIGHT)||
00809            (KEY_LEFT)||(KEY_RIGHT))
00810       ; /* Wait until no key is pressed */
00811
00812     while (((!KEY_BUTTON)&&(!KEY_FARLEFT)&&(!KEY_FARRIGHT))
00813            &&(playingState == PS_NORMAL))
00814       ; /* Wait untis some key is pressed or playing state not normal*/
00815
00816
00817     /* See if keystroke requests previous/next song */
00818     if (KEY_FARLEFT) currentFile--;
00819     if (KEY_FARRIGHT) currentFile++;
00820     if (currentFile==0) currentFile = 1;
00821
00822     if (KEY_BUTTON ||
00823         (playingState==PS_NEXT_SONG) ||
00824         (playingState==PS_PREVIOUS_SONG)){
00825       while (KEY_BUTTON)
00826         ;
00827
00828       PlayCurrentFile();
00829       ConsoleWrite ("Playing state after playing is: ");
00830       ConsolePutUInt (playingState);
00831
00832       if (playingState == PS_PREVIOUS_SONG) currentFile--;
00833       if (playingState == PS_NEXT_SONG) currentFile++;
00834       if (currentFile==0) currentFile = 1;
00835       if (playingState == PS_END_OF_SONG) playingState = PS_NORMAL;
00836
00837
00838       Mp3SoftReset();
00839       LoadPatch();
00840       StartPatch();
00841
00842
00843       while ((KEY_BUTTON)||(KEY_FARLEFT)||(KEY_FARRIGHT)||
00844              (KEY_LEFT)||(KEY_RIGHT))
00845         ; /* Wait until no key is pressed */
00846     }
00847
00848
00849   }
00850
00851
00852 }

Here is the call graph for this function:

void PlayCurrentFile (   )


Plays a disk file.

Returns 1) if the file ends or 2) if the global variable playingState is not PS_NORMAL i.e. user has requested stop or next or previous.

Definition at line 692 of file player.c.

References BuildFragmentTable(), fragment, Address::l, LcdLocateHome, LcdPutConstantString(), Mp3WriteRegister, PlayDiskSectors(), playingState, PS_NEXT_SONG, PS_NORMAL, sectorAddress, SendZerosToVS10xx(), SM_OUTOFWAV, SPI_MODE, and fragmentEntry::start.

Referenced by main().

00692                       {
00693   xdata char c, nFragments;
00694
00695   playingState = PS_NORMAL; /* Request to play normally */
00696   //uiMode = UI_SPEC; /* User interface: show title SPECANA FOR VS1003*/
00697
00698   LcdLocateHome();
00699   LcdPutConstantString("Opening ");
00700
00701   ConsoleWrite ("Building file fragment table...");
00702   nFragments = BuildFragmentTable(); /* Too slow, rewrite! */
00703   ConsoleWrite("\rFragments: ");
00704   ConsolePutUInt(nFragments);
00705
00706   LcdLocateHome();
00707   LcdPutConstantString("Playing ");
00708
00709   for (c=0; c<nFragments; c++){
00710     sectorAddress.l = fragment[c].start;
00711     ConsoleWrite ("\rPlayer: Playing from sector ");
00712     ConsolePutUInt (sectorAddress.l);
00713     if (PlayDiskSectors(fragment[c].length)!=0){
00714       Mp3WriteRegister(SPI_MODE,0,SM_OUTOFWAV);
00715       SendZerosToVS10xx();
00716       return; //return without touching the value of playingState
00717     }
00718   }
00719   SendZerosToVS10xx();
00720
00721   // After finishing normally default to requesting to play next song
00722   playingState = PS_NEXT_SONG;
00723
00724 }

Here is the call graph for this function:

void ScreenSetPlayTime (   )


Sets playing time and mode icon to left display title.

Definition at line 285 of file player.c.

References displayTitle, Mp3ReadRegister(), playingState, PS_NORMAL, PS_RECORDING, and SPI_DECODE_TIME.

Referenced by AvailableProcessorTime().

00285                         {
00286   unsigned int playTime;
00287   unsigned char minutes, seconds;
00288
00289   playTime = Mp3ReadRegister(SPI_DECODE_TIME);
00290   minutes = playTime/60;
00291   seconds = playTime%60;
00292   displayTitle[0]=('0'+minutes/10);
00293   displayTitle[1]=('0'+minutes%10);
00294   displayTitle[2]=(':');
00295   displayTitle[3]=('0'+seconds/10);
00296   displayTitle[4]=('0'+seconds%10);
00297   displayTitle[5]=(' ');
00298   displayTitle[6]=(' ');
00299   displayTitle[7]=(' ');
00300
00301   if (seconds&1){
00302     if (playingState == PS_RECORDING){
00303       displayTitle[6]='o';
00304     }else{
00305       displayTitle[6]='\x7e';
00306     }
00307
00308   }
00309
00310   if ((playingState != PS_NORMAL)&&(playingState != PS_RECORDING)){
00311     displayTitle[6]='\xdb';
00312   }
00313
00314
00315
00316 }

Here is the call graph for this function:

void StartPatch (   )


Start patch code.

Definition at line 269 of file player.c.

Referenced by main().

00270 {
00271
00272 #ifdef VS1003
00273   //  Mp3WriteRegister(SPI_AIADDR, 0x00, 0x50);
00274 #else
00275   //Mp3WriteRegister(SPI_AIADDR, 0x02, 0x00);
00276   //Mp3WriteRegister(SPI_AICTRL0, 0x00, 0x00);
00277   //Mp3WriteRegister(SPI_AICTRL0, 0x00, 0x01);
00278 #endif
00279 }

void timer0_interrupt (  void   )


User Interface Timer interrupt.

Does NOT do any screen/button handling, only updates screen scroll variable and the userInterfaceDelayElapsed flag.

Definition at line 241 of file player.c.

References displayLength, displayPosition, SPMax, and userInterfaceDelayElapsed.

00241                                        {
00242   static char displayDelay;
00243   userInterfaceDelayElapsed = 1;
00244   if (++displayDelay==12){
00245     displayDelay = 0;
00246     displayPosition++;
00247     if (displayPosition>displayLength+7){
00248       displayPosition = -7;
00249     }
00250   }
00251   if (SP>SPMax) SPMax = SP;
00252
00253
00254 }

Variable Documentation

unsigned char intlevel = 0


Current interrupt level.

Definition at line 224 of file player.c.

xdata playingstatetype playingState = PS_NORMAL


Playing State Global, 0=normal playing, 1=abort playing.

Definition at line 221 of file player.c.

Referenced by AvailableProcessorTime(), main(), PlayCurrentFile(), PlayDiskSectors(), Record(), and ScreenSetPlayTime().

xdata unsigned char SPMax = 0


Definition at line 233 of file player.c.

Referenced by main(), and timer0_interrupt().

xdata uimodetype uiMode = UI_SPEC


Current User Interface mode (Title, Volume, ...).

Definition at line 231 of file player.c.

Referenced by AvailableProcessorTime(), main(), and Record().

xdata unsigned char userInterfaceDelayElapsed = 0


Interrupt-driven flag to reduce unnecessary UI updates.

This is set to 1 by timer interrupt every n milliseconds.

Definition at line 228 of file player.c.

Referenced by AvailableProcessorTime(), and timer0_interrupt().

All software copyright 2000-2004 VLSI Solution OY. Redistribution of these software modules are limited to promotional use only and only with the VS1011 / VS1002 / VS1003 MP3-Evakit evaluation boards. Free or commercial use of these software modules in MP3 players is ok if the product includes MP3 decoder chip(s) from VLSI. You can request the complete (compilable) package from mp3@vlsi.fi
