Latest News

2018-09-28

VS1010d released

Prototype IC VS1010c has been superseded with VS1010d. VS1010d is hardware and software downwards compatible with VS1010c, so projects developed for VS1010c will run on VS1010d as is. However, VS1010d contains several new features that can be used in new projects, like virtual instruction memory support. From now on, VS1010d will be the officially supported VS1010 series device.

--> Read more

2018-09-07

VS1010 USB microSD Card Reader Board

The VS1010 USB microSD Card Reader is a miniature sized demonstration board which shows how the VS1010D can be used as an SD card reader. It operates as a standard USB mass storage device offering High Speed SD read / write access.

--> Read more

2018-09-03

VS1005 BreakOut Board MkII - HiRes Recorder

The VS1005 BreakOut Board MkII shows how to implement an inexpensive HiRes Recorder, capable of recording up to 96 kHz 24-bit resolution to a microSD card. A 4 Mbit VS23S040 SRAM IC is used to offer buffering that is essential to recording to SD cards. Card sizes up to 256 GB have been tested, giving an continuous recording time in excess of 120 hours using the highest quality settings.

--> Read more

2018-07-02

VS1010 USB/UART Adapter Board

VS1010 USB to UART adapter is a tiny demonstration board which shows how the VS1010C can be used as a 3.3V CMOS voltage level USB-to-serial adapter. In this operating mode, the VS1010C functions as a USB standard communications class device. No custom drivers are needed in the host PC or device.

--> Read more

2018-07-02

VS1063 31-Band Audio Level Meter

While encoding mono Ogg Vorbis, implements a 31-band 1/3-octave power level meter, with a range of 23-24000 Hz (when encoding at 48 kHz). It is useful for e.g. high-accuracy spectrum analyzers or engineering applications.

--> Download plugin

Audio Is Everywhere

Wherever you go, you are surrounded by sound. From the moment your alarm clock wakes you up, sound follows you everywhere on the Internet radio, car stereo, traffic lights, portable stereo, mobile phone, talking ATM, elevator, TV set, baby monitor, Hi-Fi equipment, toys, and many other devices.

We at VLSI Solution are part of this development. Our high-quality audio integrated circuit products help you put audio everywhere from toys and audio guides to awarded High-end Hi-Fi equipment.



Integrated Circuit Products

  • VS1010b
  • VS1205g
  • VS23S010C-S
  • VS1010 is the newest member of our audio decoder family. It is both a low-cost MP3 decoder with extensive I/O features and a microcontroller that can act either as a System-on-a-Chip or as a coprocessor.
  • VS1005 is our flagship audio product. It is probably the world's highest integrated system-on-silicon device for personal music players. See our MP3 player presentation.

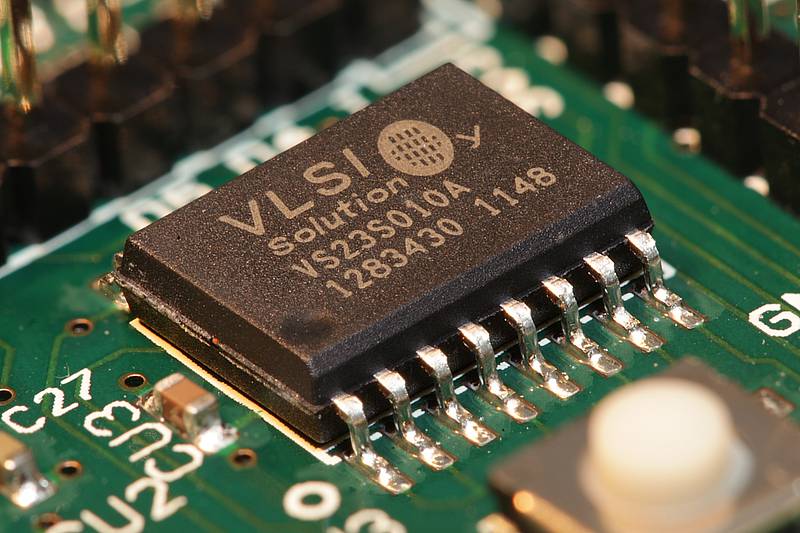

  • VS23S040 is a 4 Mbit SPI SRAM and VS23S010 is a 1 Mbit SPI SRAM. Their main applications are memory expansion, for example buffering uncompressed audio when recording to an SD card, buffering internet audio stream or microcontroller RAM extension. Samples are available.
  • VS1063 is an MP3 encoder/decoder IC. It's a pin-compatible replacement for VS1053 with many added features, ranging from a speed shifter and 5-channel equalizer to a whole new full duplex codec mode. See our internet streaming presentation
  • VS1000 is an audio player SoC. It is intended for content sellers such as audio books, tourist guides, announcement systems and intelligent toys.
  • VS1053 is a high performance decoder and encoder chip for audio streaming applications such as internet radio. VS1053 has multi-format decoding capability and customization by using our IDE. This makes it attractive for the commodity MP3 player market as well.
  • VS1003 is a high quality MP3+WMA decoder. It is ideal for small micro SD card based player applications. Additionally audio processing power of the device can be used for DSP applications such as adaptive echo cancellation for Skype speaker phones.
  • VS1103 is for effect processing such as reverb, echo cancellation, PCM recording, MIDI synthesis and simple pitch shifting. Like VS1003 it offers very simple SD card based player applications but with less cost.
  • VS1011 is a very popular MP3 decoder. It is very simple to use as an audio interface of a master processor.

Module Products

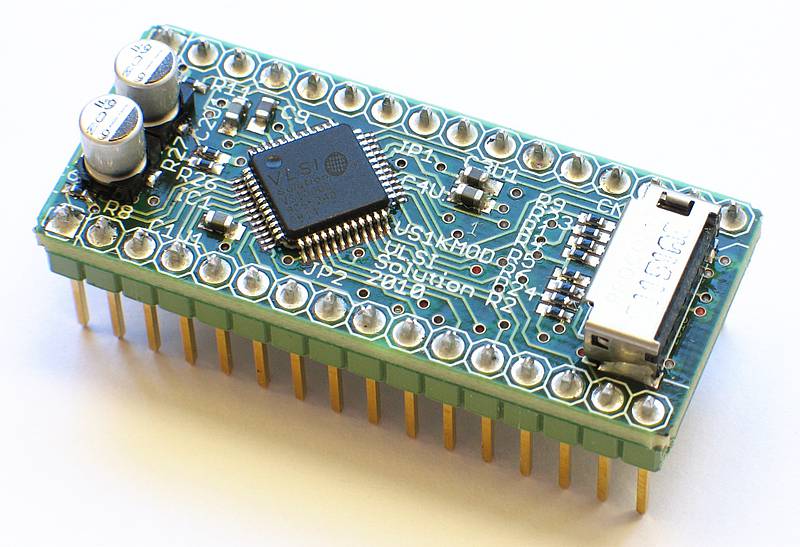

  • The VSMD001 family is a small, high performance, easy to use Ogg Vorbis audio player that is controlled from the IO pins, UART, SPI or USB. It can be used as a "plug-in" audio board in electronic systems or as a standalone small audio player. The audio content can locate either in the embedded  SPI nor flash or in a micro SD card.
  • The VSMD301 family has power and audio pins compatible with VSMD001 family. Features are similar as in VSMD001 family. It lacks USB interface of the other family but has mono ADC with microphone amplifier for recording or mixing. VSMD301 family uses PCM or ADPCM format for audio content. Simple audio format provides low audio delay and seamless looping capability.

Reference Designs

  • The VS1053b USB Hi-Fi Player is a multi-format "MP3 player" that uses the VS1053 as a stand-alone component along with a low-cost High Speed (480 Mbit/s) USB controller. The device can play .MP3, .OGG, .AAC, .M4A, .WMA, .WAV, .IMA and .MID files with excellent sound quality. It can either use SD/SDHC cards (over 2 GB supported) or internal FLASH memory.

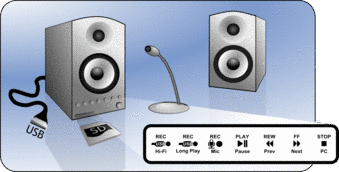

  • The HiFi Recorder Application demonstrates the capabilities of VS1000d and VS1053b chips for high quality stereo recording from line-in or microphone interface.
  • VS1003 SD Card Mini Player application is an extremely simple SD card player. It features mp3 and WMA audio formats, small size, excellent audio quality. It is likely the simplest, smallest and lowest cost SD card player in the world.
  • VS1000 Button Cell Player application is a very low power audio player. It features Ogg Vorbis decoding with very low bit rates and credit card size. The low BOM of less than 3 USD and royalty free audio compression make it attractive for disposable audio applications such as audio guide of a museum or marketing gift.
  • VS1000 Audio Book application demonstrates VS1000 device capabilities in portable bible or audio book application. The system features excellent audio quality, high audio compression. The smart indexing with bookmarking is capable to handle thousands of predefined jumps and endless loops.

Developer Boards

  • VS8053/VS1053/VS1063 Developer Board features comprehensive hardware interfaces for writing and testing various audio signal processing software on VS8053/VS1053/VS1063 devices
  • VS10xx Prototyping Board is a simple standalone player that uses VS1011/VS1003/VS1033/VS1053/VS1063/VS1103 devices and MMC/SD card. It has wire wrap area for adding user specific features.
  • VS1000 Developer Board is an application development board for VS1000. It features all necessary hardware for writing and testing new software for VS1000.

ASIC services

Do you need a customized circuit?
